Pendant

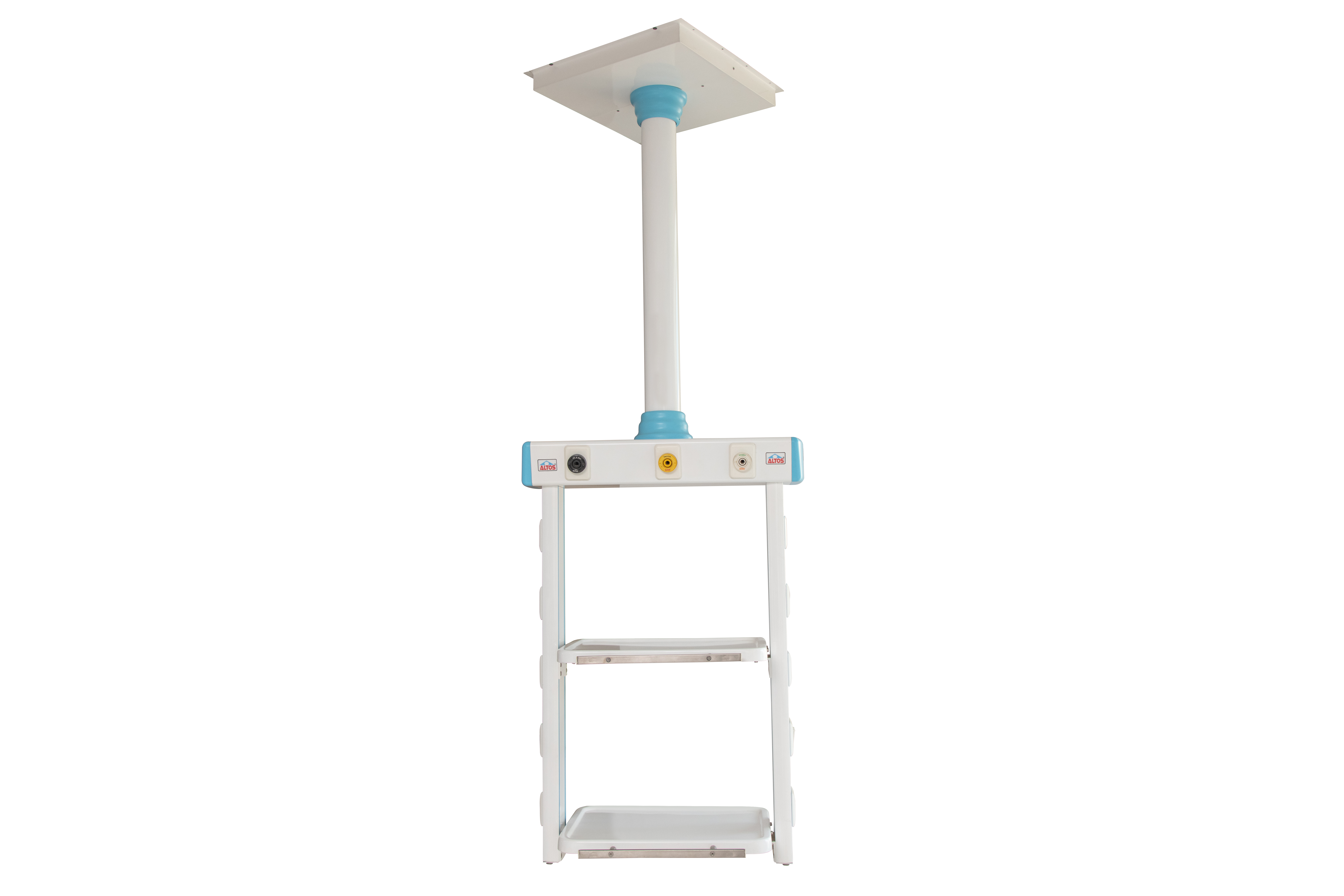

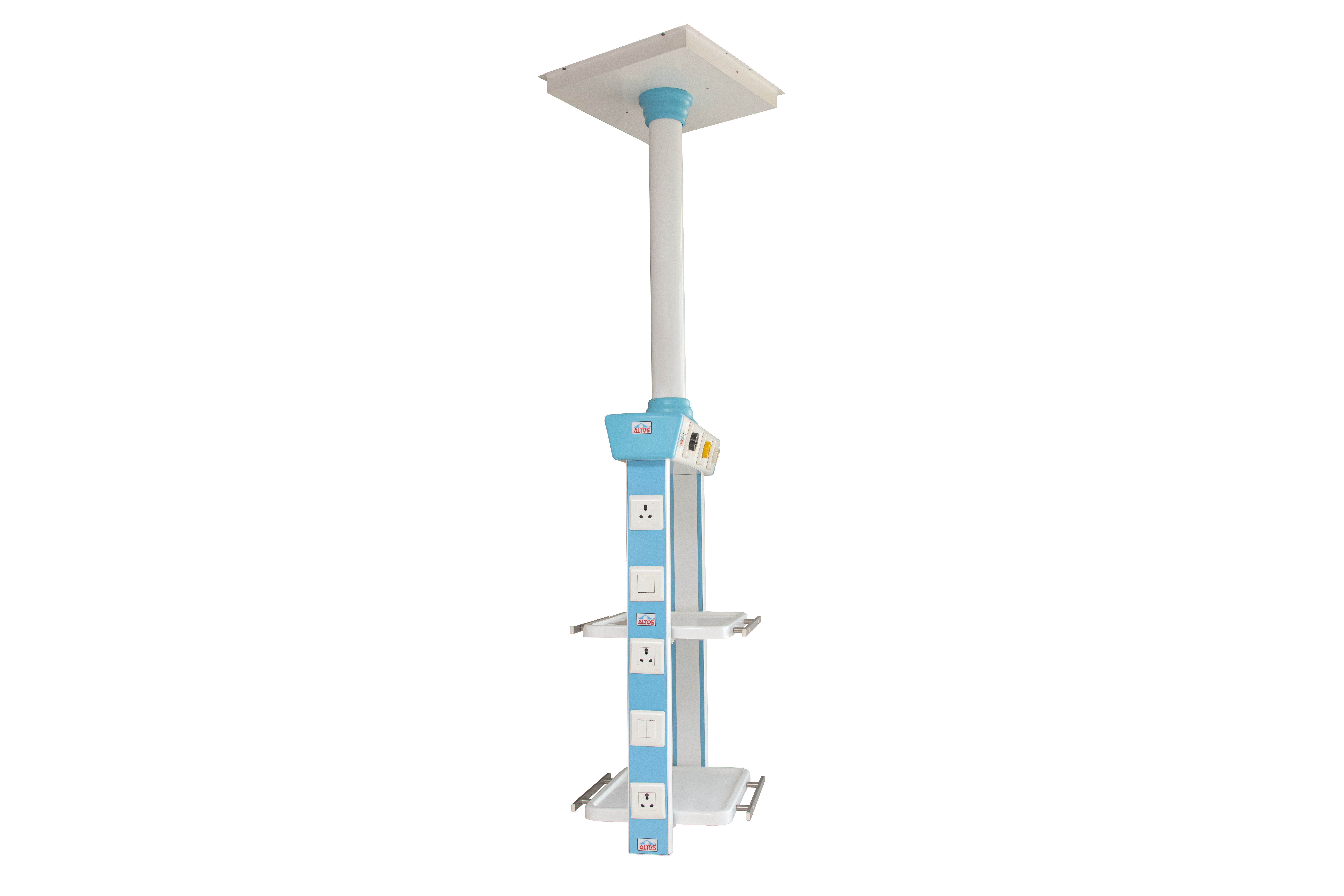

Fixed Surgical Pendant​

    Technical Specifications​

  • Product Code: ALT 601
  • Maximum Load: 120 Kg
  • Package Sizes : 800 x 620 x 700 mm & 1070 x 140 x 260 mm + size of upper ceiling mounting part
  • Electrical Equipment : 6 X Electric Sockets(optional)
  • Operating Temperature : (+10) – (+45) °C
  • Product Weight: 120Kg
  • Horizontal Arm Length : (600-1000) mm

     Features

  • Gas Equipment: Variable according to project
  • Power Supply: 220 V 50 Hz
  • Material: Aluminum Extrusion Profile and high impactive ABS With SS304 Screws
  • Color: Single /Dual color combination or as per requirement
  • Shelves: 2/3 (variable)
  • The angle of rotation: up to 340 degree
  • Packaging Type: Wrapped /Wooden packing

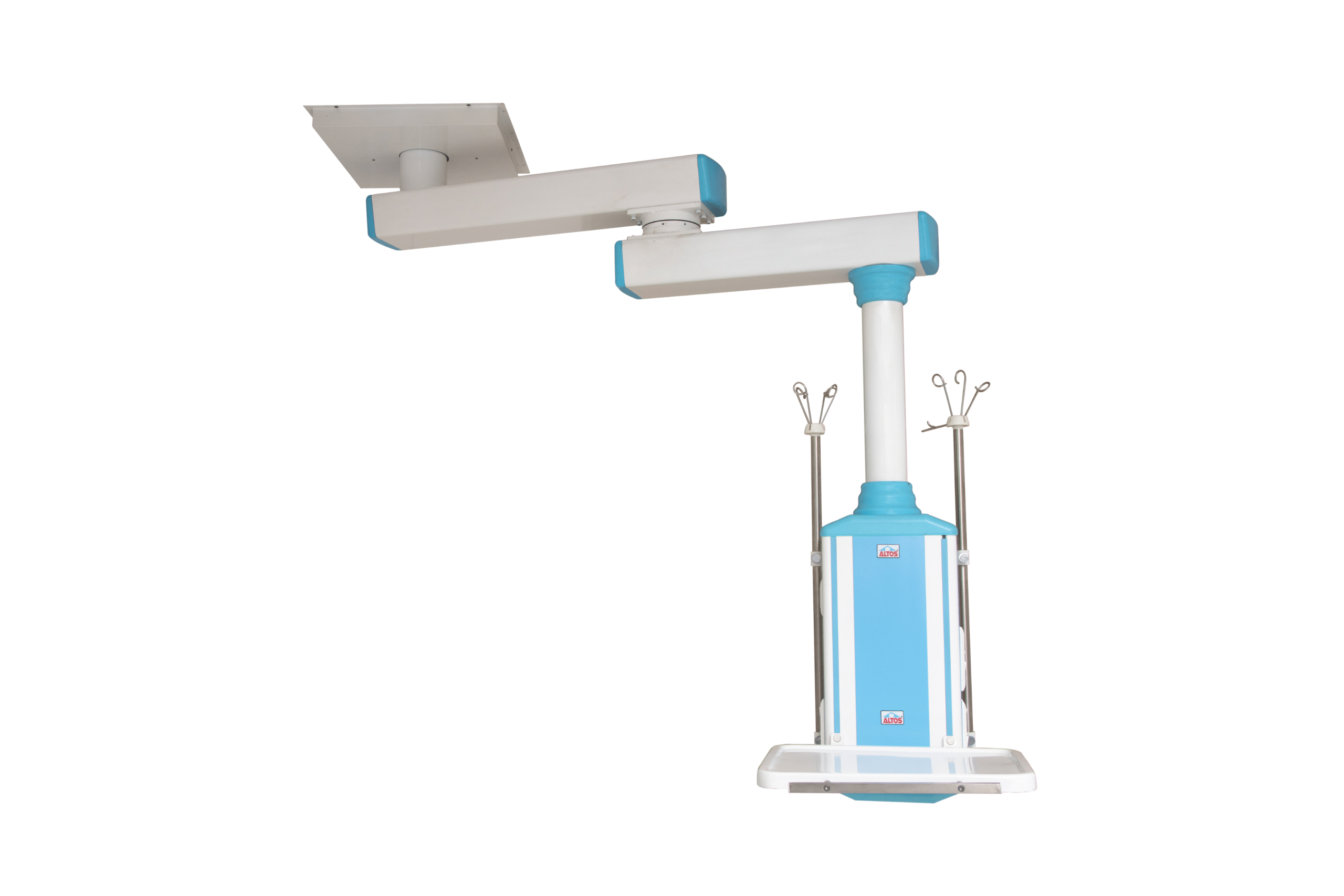

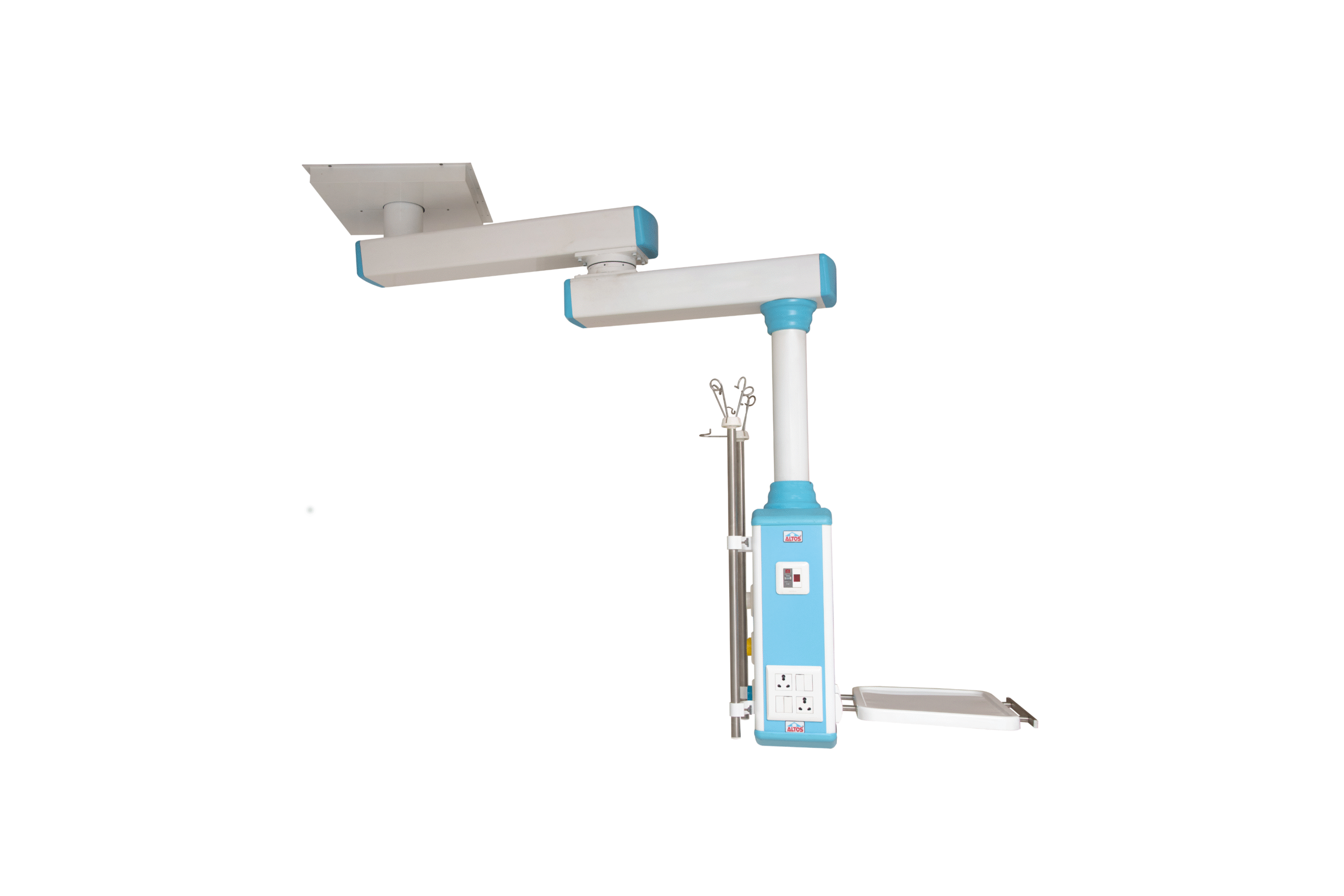

Double Arm Surgical Pendant
     Technical Specifications
  • Product Code: ALT 603
  • Maximum Load: Max 100 Kg
  • Electrical Equipment : 6 X Electric Sockets, (optional)
  • Packaging Type: Wrapped /Wooden packing
  • Product Weight: 152Kg
  • Material: Aluminum Extrusion Profile high impactive ABS With SS304 Screws
  • IV Stand: Two Pole with Hangers
  • Color: Single /Dual color combination or as per requirement
  • The angle of rotation: up to 340 degree
     Features
  • Gas Equipment: Variable according to project
  • Operating Temperature : (+10) – (+45) °C
  • Power Supply: 220 V 50 Hz
  • Horizontal Arm Length : 2x 600 to1000 mm
  • Rust-resistant coating
  • A large area covering
  • Shelves
  • Articulated
  • With columns
  • ICU
  • Endoscopy
  • Trays: 2/3 (variable)

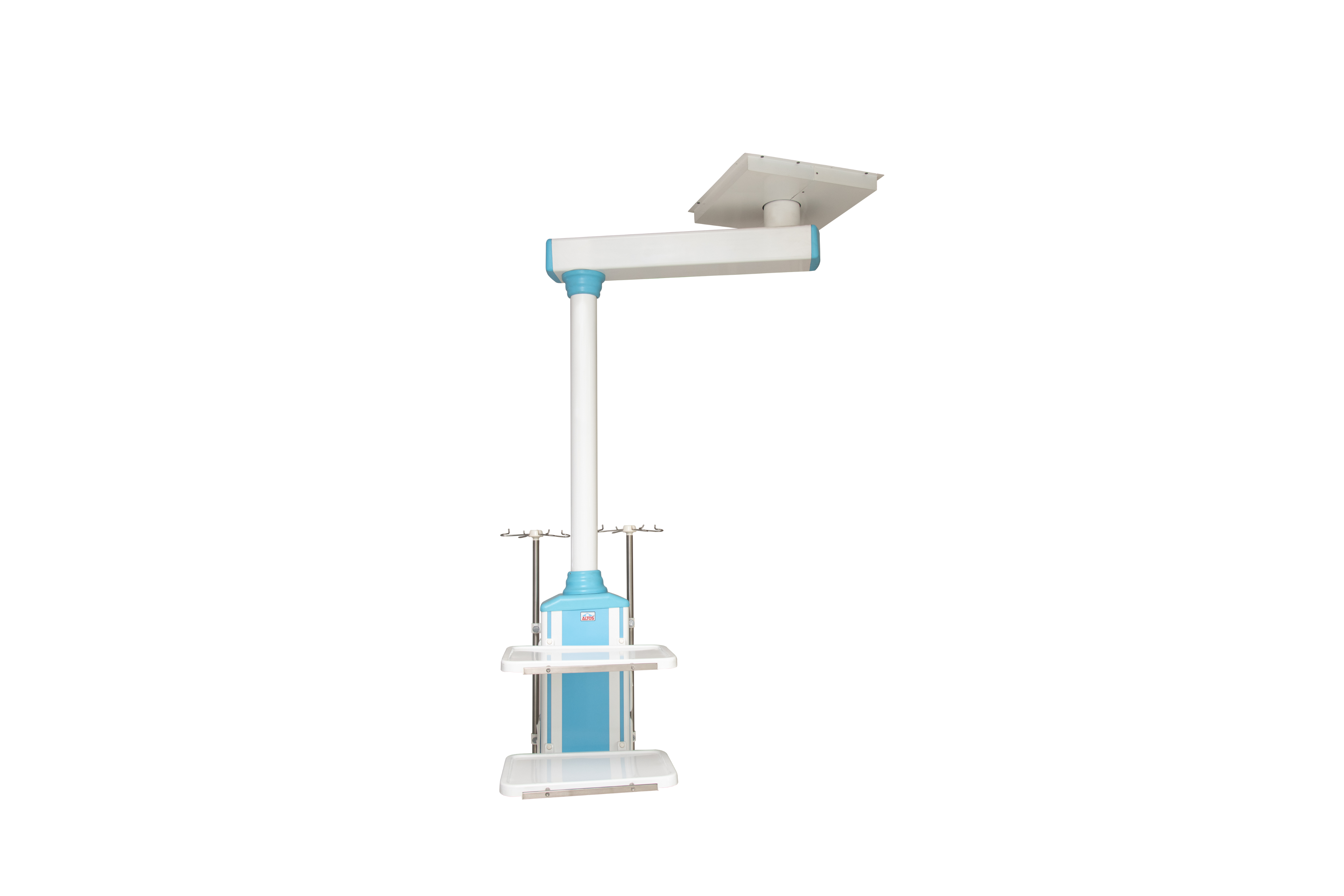

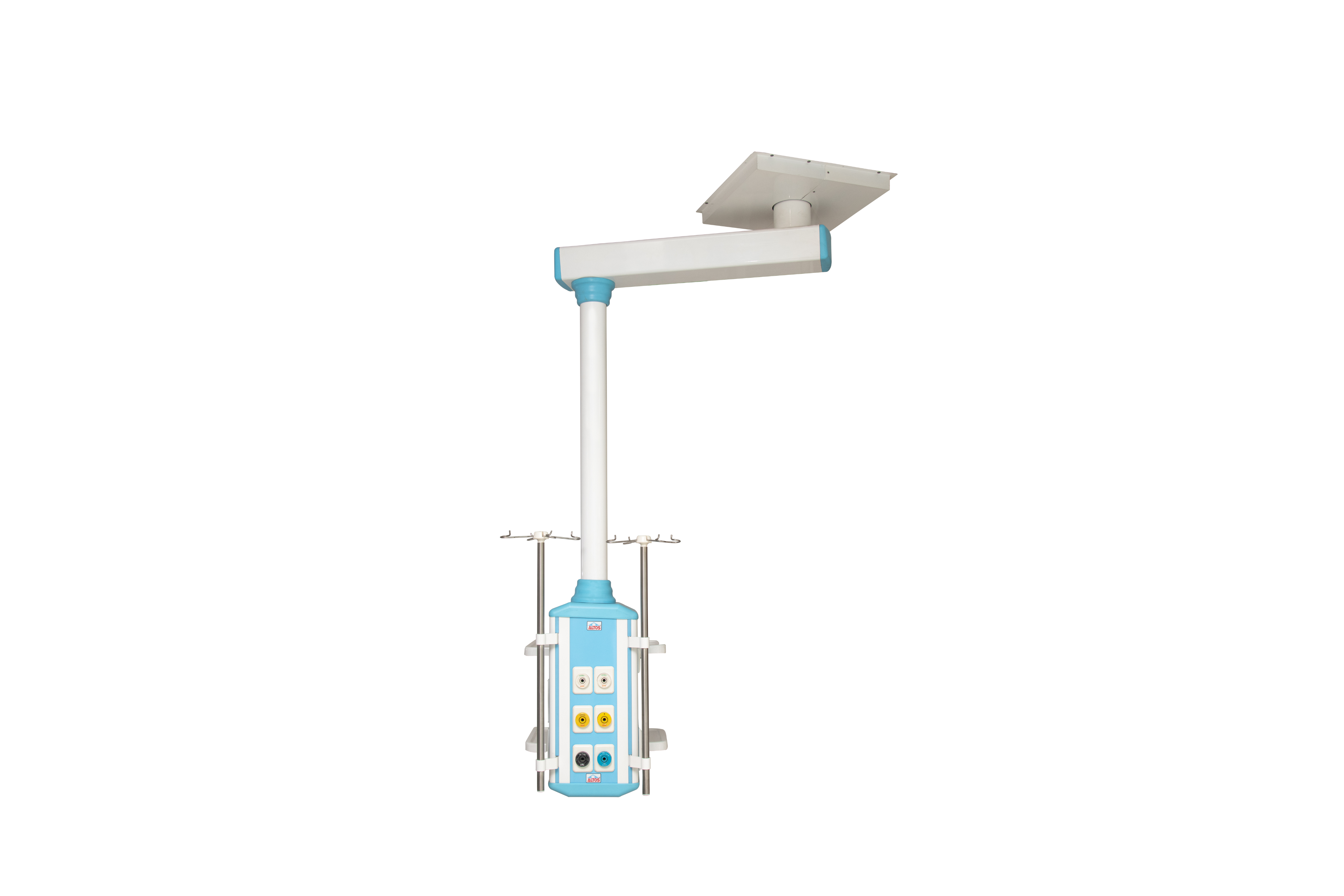

Single Arm Laparoscopic Pendant​
     Technical Specifications
  • Product Code: ALT-605
  • Maximum Load: 120 Kg.
  • Vertical Movement: 650 mm.
  • Electrical Equipment : 6 X Electric Sockets (optional).
  • Operating Temperature : (+10) – (+45) C°.
  • Power Supply: 220 V 50 Hz.
  • Horizontal Arm Length: 800-1000 mm.
  • Material: Aluminum Extrusion Profile high impactive ABS With SS304 Screws
  • Package Sizes : 1520 x 780 x 510 mm & 1120x140x260 mm & Size of upper ceiling Mounting part.
  • Product Weight: 132Kg.
     Features
  • Packaging Type: Wrapped Package /wooden packing with extra charge.
  • Color: Single Dual color combination or as per requirement.
  • The angle of rotation: up to 340 degree.
  • Gas Equipment: Variable according to project.
  • Rust-resistant coating
  • Shelves
  • Articulated
  • With columns
  • Intensive care
  • Endoscopy
  • Trays : 2 (variable)

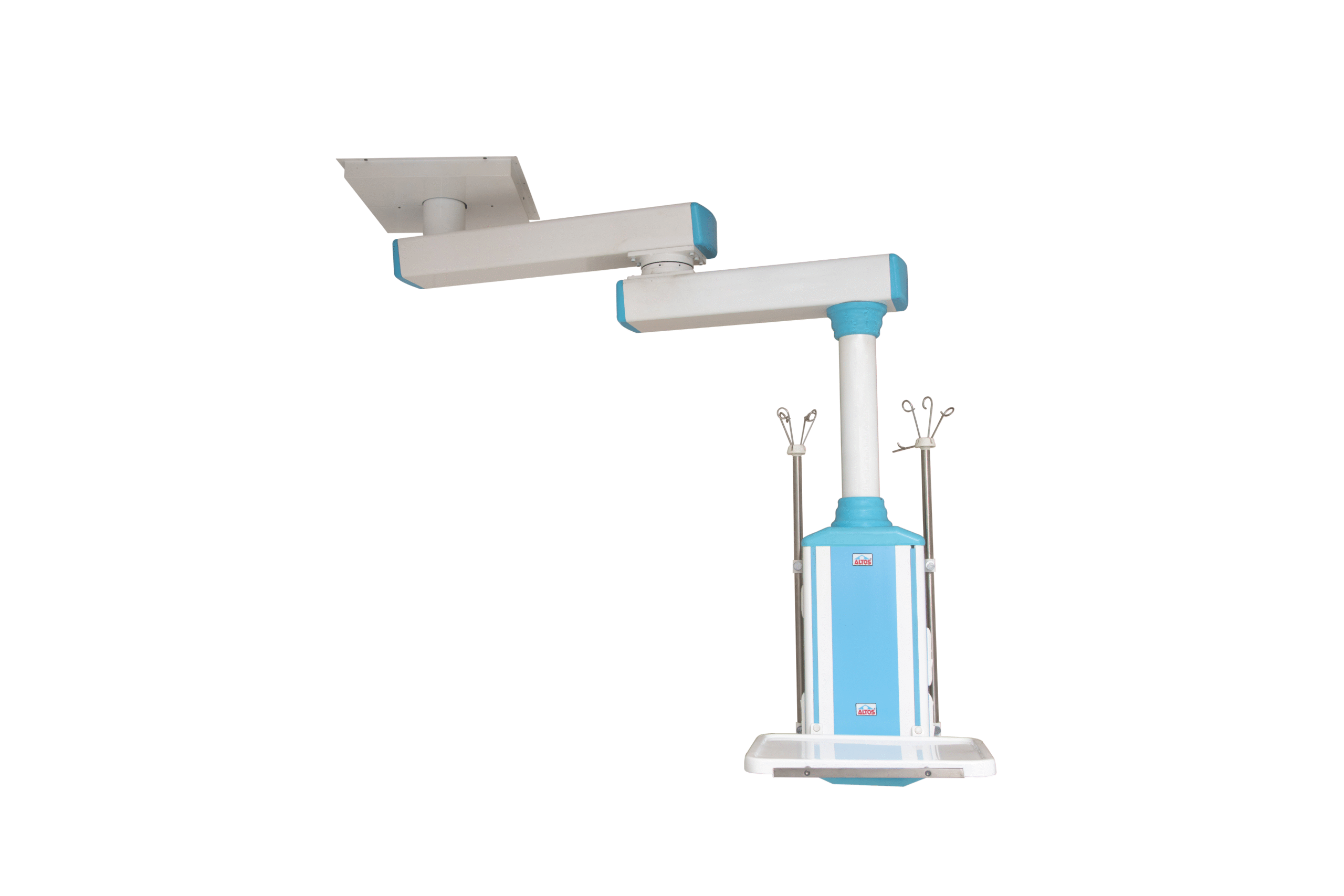

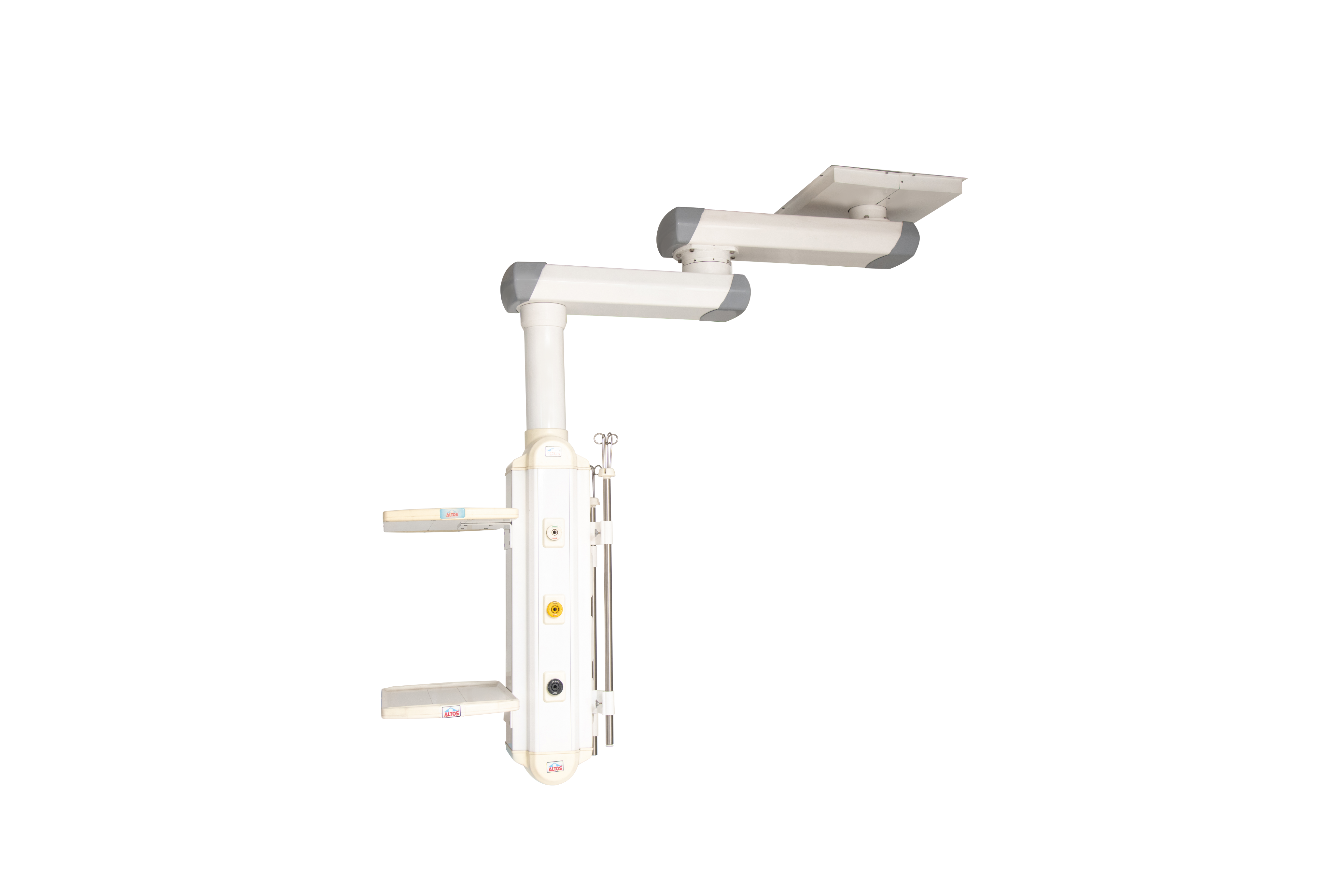

Double Arm Laparoscopic Pendant​
     Technical Specifications
  • Product Code: ALT -606
  • Maximum Load: 100 Kg
  • Vertical Movement: 650 mm
  • Operating Temperature : (+10) – (+45) C°
  • Power Supply: 220 V 50 Hz
  • Horizontal Arm Length : 2 x 800-1000 mm
  • Package Sizes : 1520 x 780 x 510 mm & 1120 x 140 x 260 mm & 1070 x 140 x 260 mm + Size of upper ceiling Mounting part
  • Product Weight: 163Kg
  • Material: Aluminum
  • Extrusion Profile high impactive ABS With SS304 Screws
  • Electrical Equipment : 8 X Electric Sockets, 4 X Electric Sockets (optional)
     Features
  • Gas Equipment: Variable according to project
  • Packaging Type: Wrapped /wooden packing
  • Color: Single /Dual color combination or as per requirement
  • Trays: 2/3 (variable)
  • The angle of rotation: up to 340 degree
  • Rust-resistant coating
  • Shelves
  • Articulated
  • With columns
  • Intensive care
  • Endoscopy

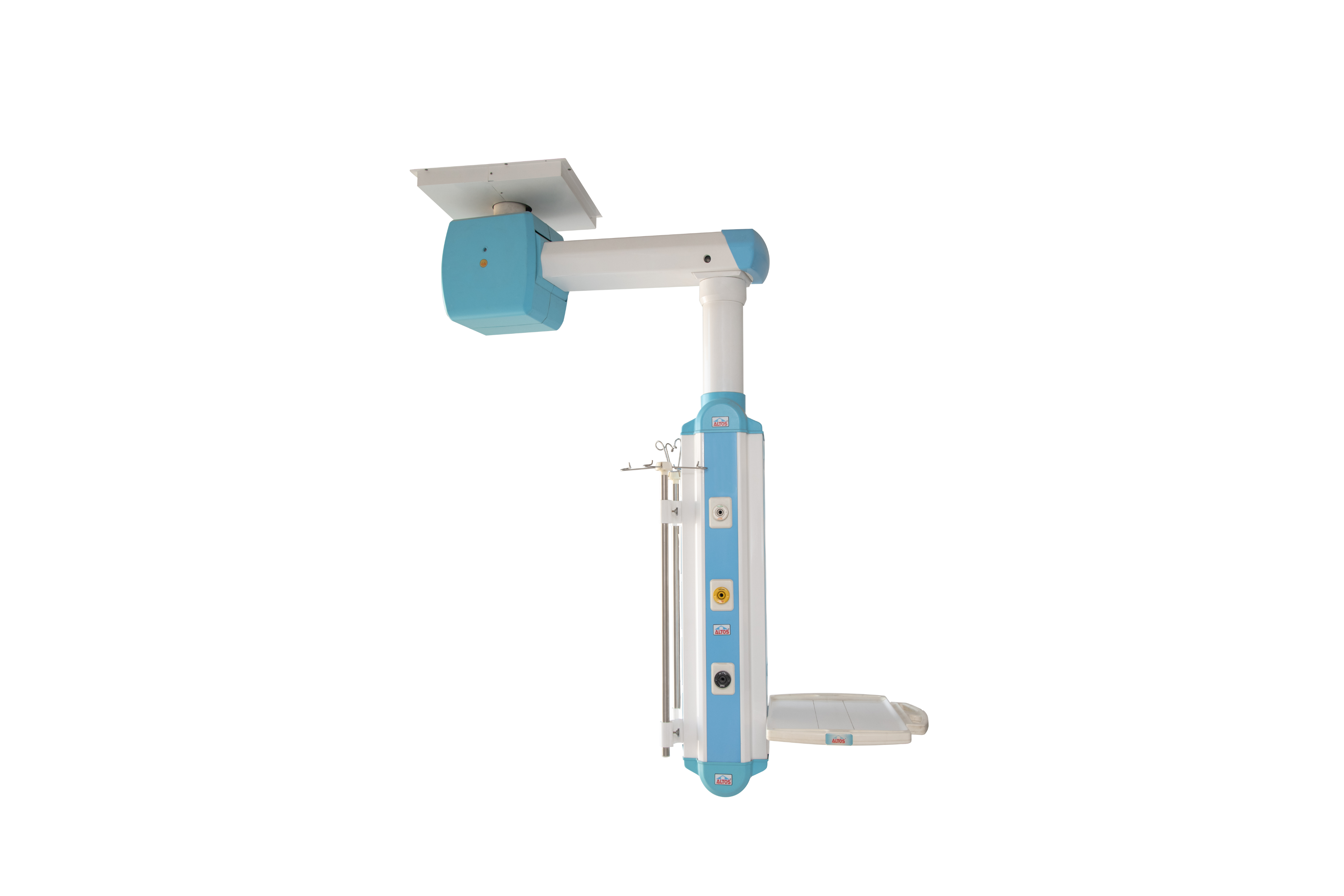

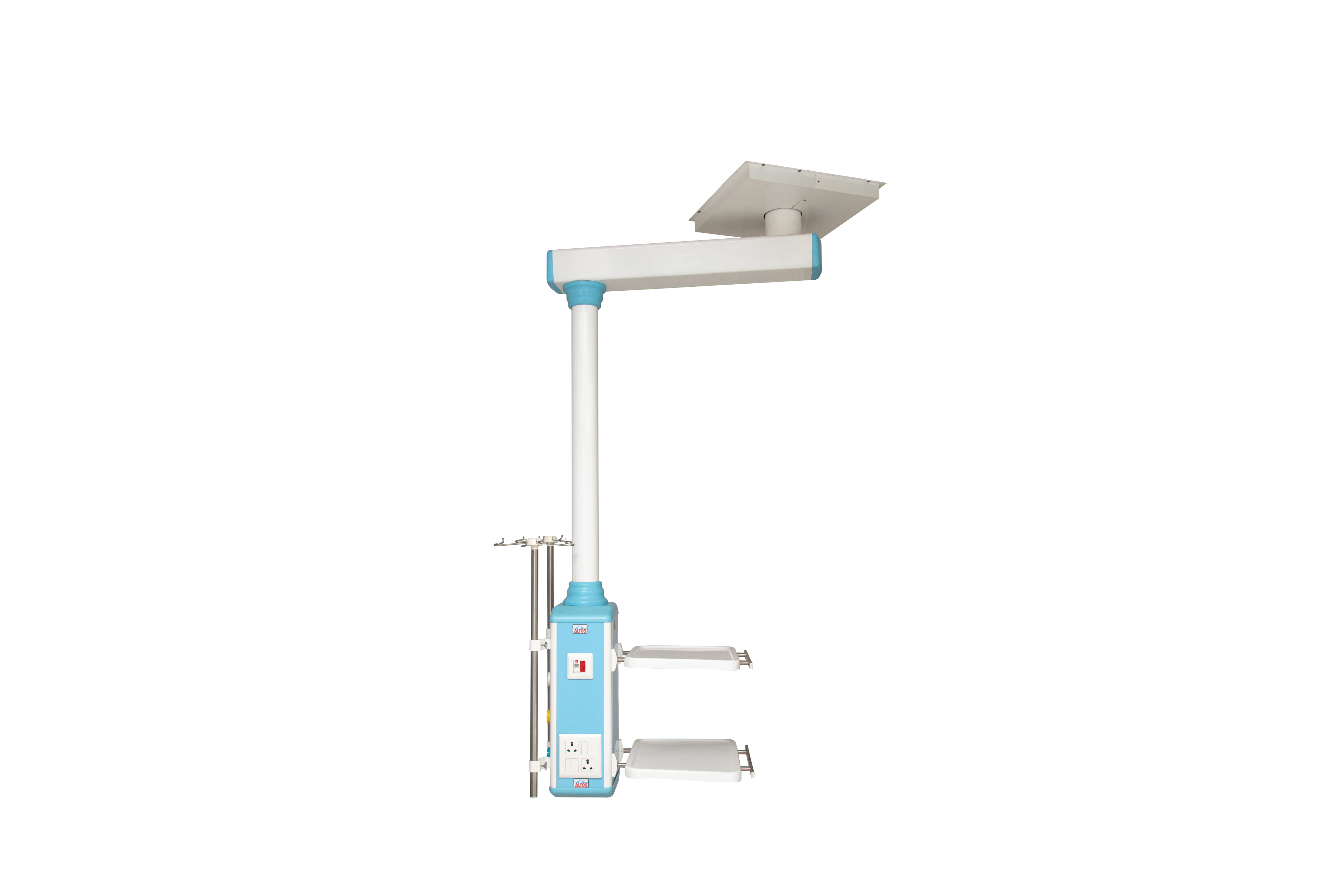

Modular Single Arm Pendant
     Technical Specifications
  • Product Code: ALT- 608
  • Number of Joints: 2
  • Maximum Load: 220 Kg
  • Electrical Equipment : 8 X Electric Sockets (optional)
  • Operating Temperature : (+10) – (+45) °C
  • Horizontal Arm Length: 600-1200 mm
  • Packaging Type: Wrapped /wooden packing
  • Package Sizes : 800 x 620 x 700 mm & 1070x140x260 mm+ size of upper ceiling mounting part
  • Product Weight:120 Kg
  • Material: Aluminum Extrusion Profile high impactive ABS With SS304 Screws
  • Power Supply: 220 V 50 Hz
     Features
  • Gas Equipment: Variable according to project
  • Color: Single /Dual color combination or as per requirement
  • Bricking System: pneumatic brake/ Electric Brake optional
  • Rust-resistant coating
  • Shelves
  • With columns
  • Intensive care
  • Endoscopy
  • Modular
  • The angle of rotation: up to 340 degree
  • Trays: 2/3 (variable)

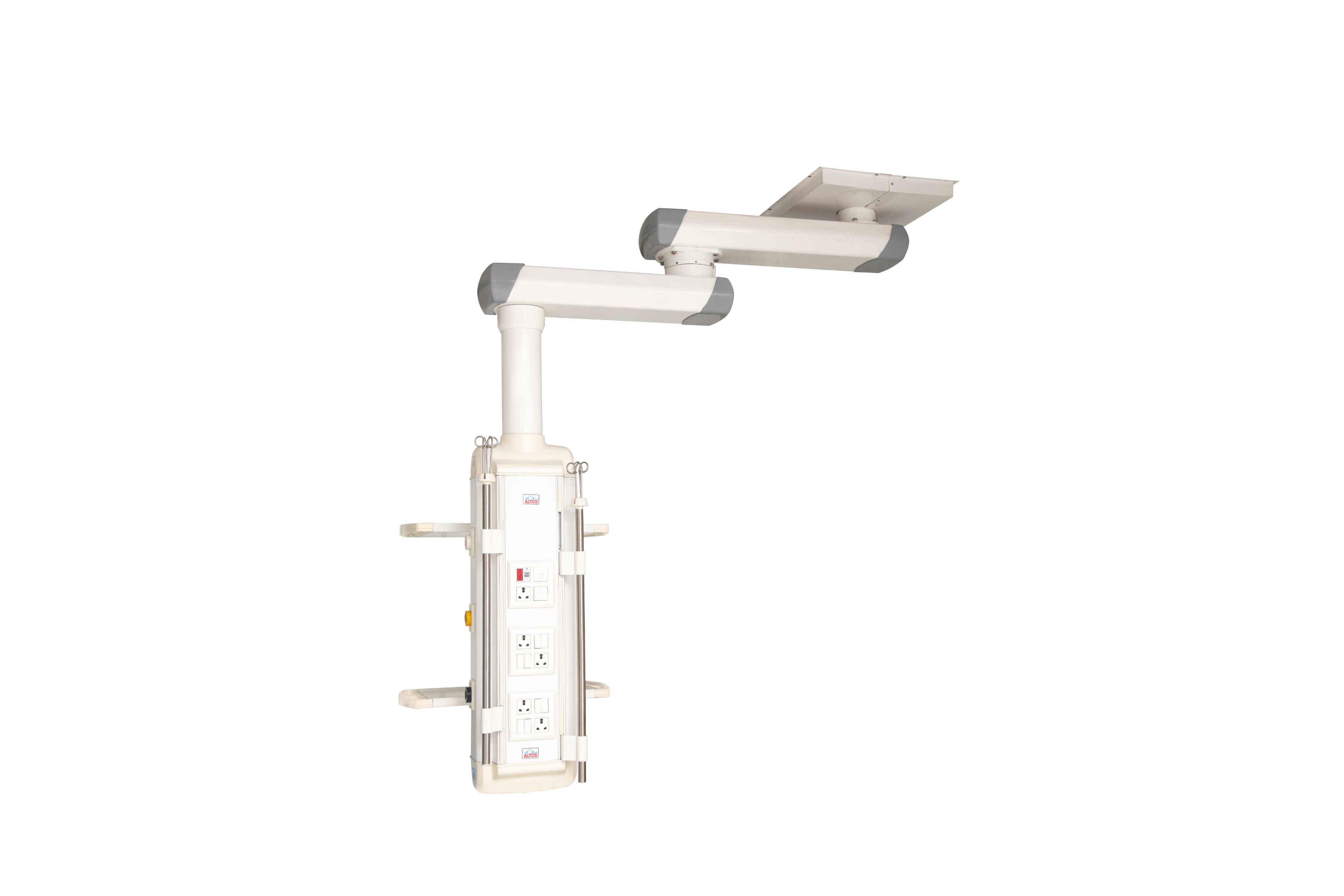

Modular Double Arm Pendant
     Technical Specifications
  • Product Code: ALT – 609
  • Maximum Load: 120 Kg
  • Vertical Movement: 650 mm
  • Electrical Equipment : 6 X Electric Sockets (optional)
  • Operating Temperature : (+10) – (+45) °C
  • Power Supply: 220 V 50 Hz
  • Horizontal Arm Length : 2 x(800-1000) mm
  • Packaging Type: Wrapped /wooden packing
  • Package Sizes : 800 x 620 x 700 mm & 1120x140x260 mm & 1070x140x260 mm + Size of upper ceiling Mounting part
  • Product Weight: 180Kg
     Features
  • Gas Equipment: Variable according to project
  • Material: Aluminum Extrusion Profile high Impactive ABS With SS304 Screws
  • Color: Dual color combination or as per requirement
  • Rust-resistant coating
  • Shelves
  • With columns
  • Intensive care
  • Endoscopy
  • Monitor Support Arm (Optional).
  • Trays: 2/3 (variable)
  • The angle of rotation: up to 340 degree

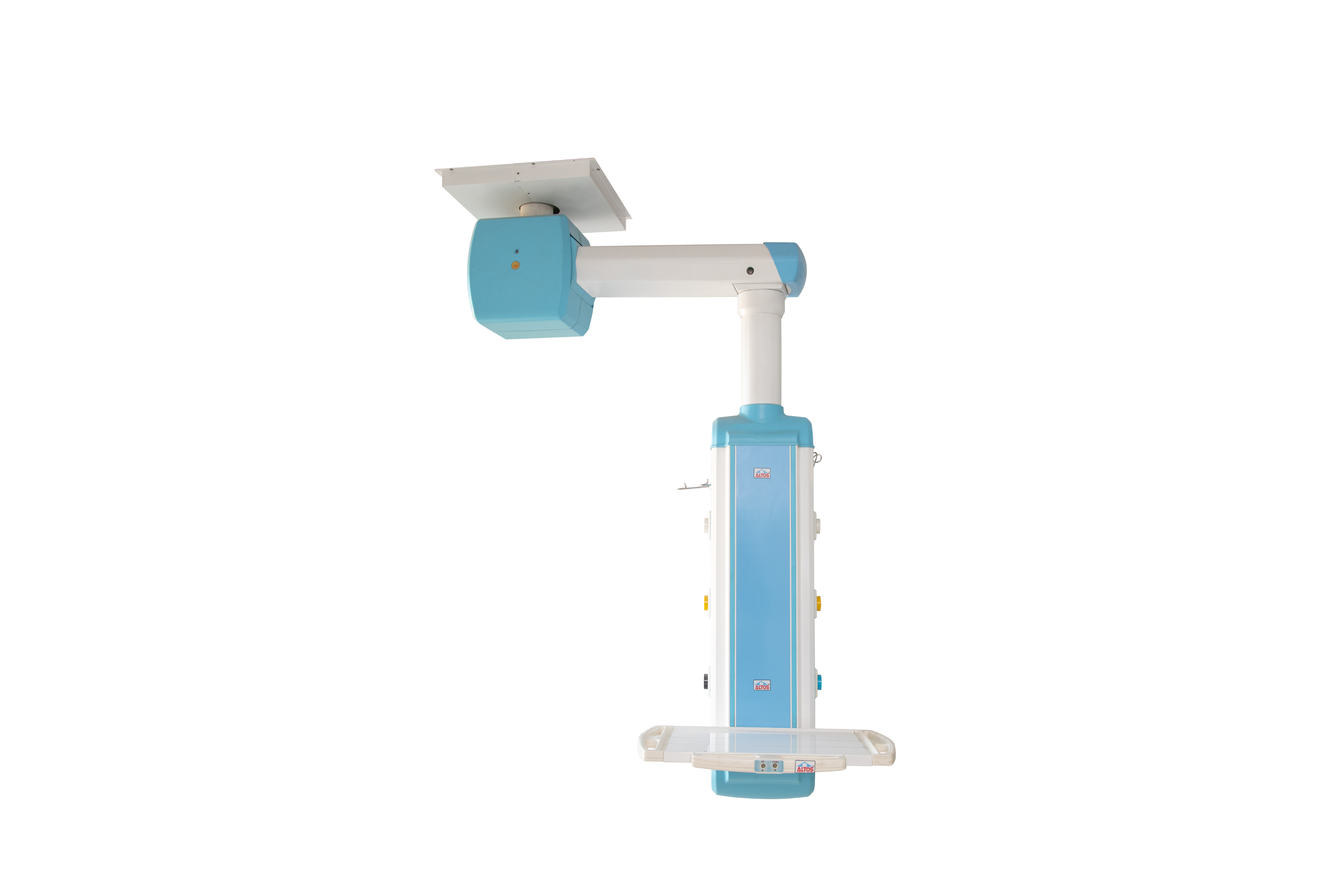

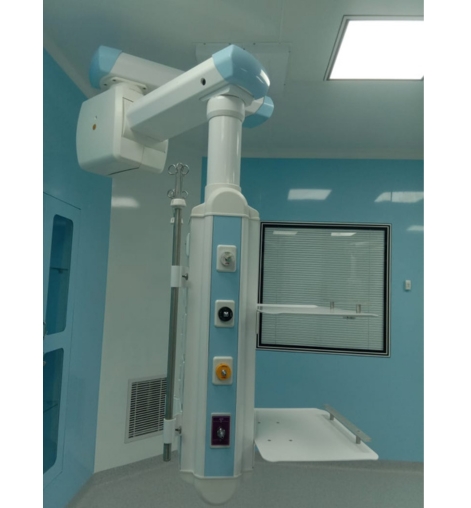

Modular Electric Single Arm Pendant​
     Technical Specifications
  • Product Code: ALT- 610
  • Maximum Load: 150 Kg
  • Vertical Movement: 650 mm
  • Material: Aluminum Extrusion Profile high impactive ABS With SS304 Screws
  • Electrical Equipment : 6 X Electric Sockets, (optional)
  • Operating Temperature : (+10) – (+45) °C
  • Power Supply: 220 V 50 Hz
  • Horizontal Arm Length: 80-100 mm
  • Packaging Type: Wrapped /wooden packing
  • Package Sizes : 1150 x 620 x 700 mm & 1120x140x260 mm+ Size of upper ceiling Mounting part
  • Product Weight: 180 Kg
     Features
  • Gas Equipment: Variable according to project
  • Color: Single /Dual color combination or as per requirement
  • Break: Pneumatic Break
  • Rust-resistant coating
  • Shelves
  • With columns
  • Intensive care
  • Endoscopy
  • Monitor Support Arm (Optional).
  • Motorized
  • Trays: 2/3 (variable)
  • The angle of Rotation: up to 340 degree

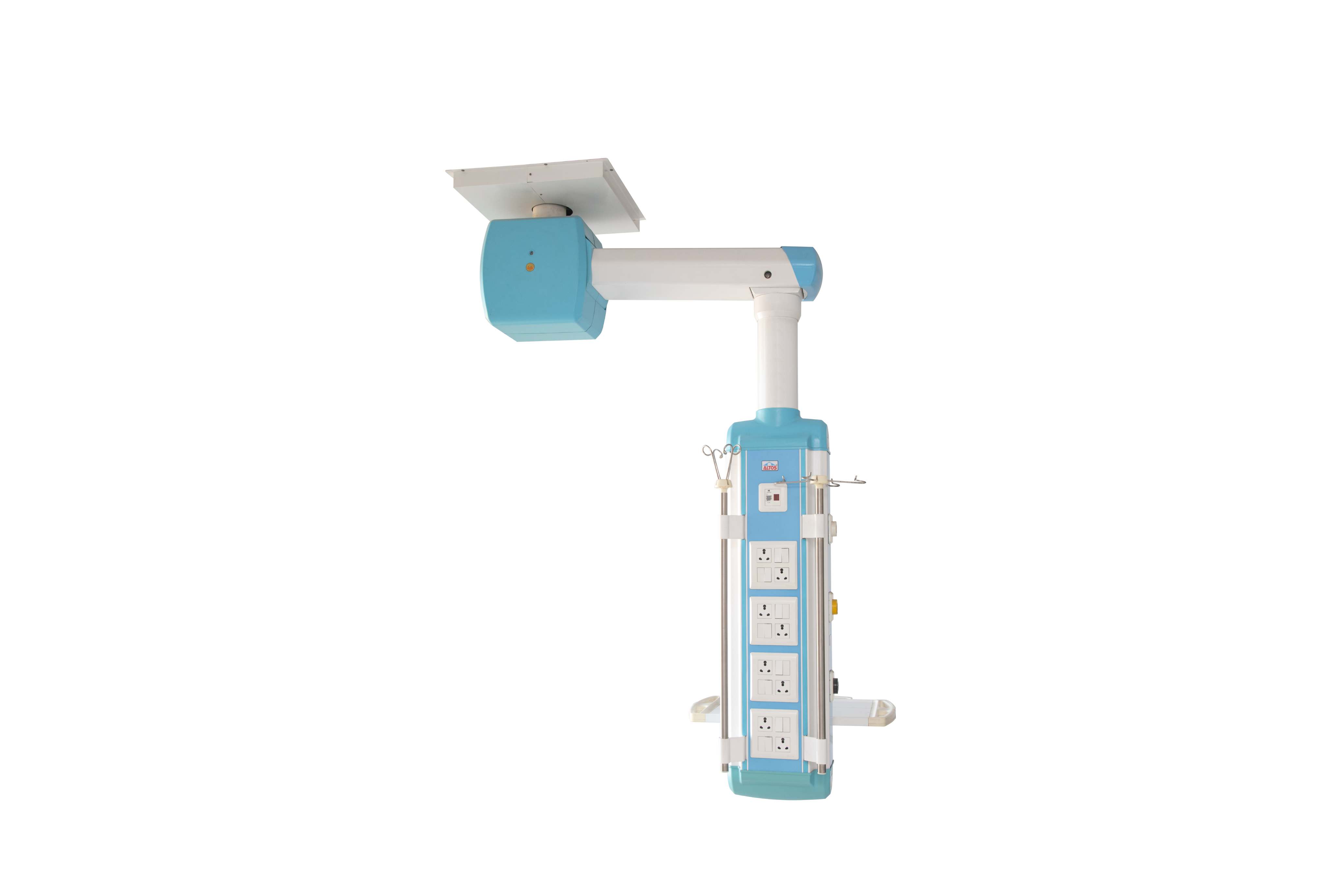

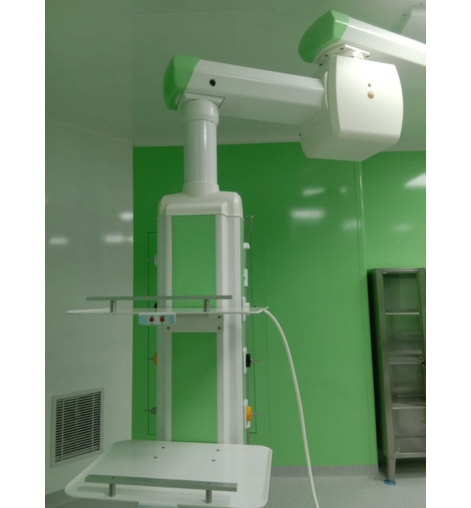

Modular Electric Double Arm Pendant
     Technical Specifications
  • Product Code: ALT -611
  • Maximum Load: 120 Kg
  • Vertical Movement: 650 mm
  • Electrical Equipment : 6 X Electric Sockets (optional)
  • Operating Temperature : (+10) – (+45) °C
  • Power Supply: 220 V 50 Hz
  • Horizontal Arm Length: 80-100 mm
  • Packaging Type: Wrapped /wooden packing
  • Package Sizes : 1150 x 620 x 700 mm & 1120x140x260 mm+ Size of upper ceiling Mounting part
  • Product Weight: 210 Kg + Upper ceiling connection part
  • Material: Aluminum Extrusion Profile with high impactive ABS With SS304 Screws
  • Movement: 21 degrees up and 24 degrees down
     Features
  • Gas Equipment: Variable according to project
  • Color: Single /Dual color combination or as per requirement
  • Trays: 2 to 5 ( adjustable)
  • The angle of Rotation : up to 340 degre
  • Rust-resistant coating
  • Shelves
  • With columns
  • Intensive care
  • Endoscopy
  • Modular
  • Monitor Support Arm (Optional).
  • Motorized
  • Large area covering,
  • Pneumatic brake
